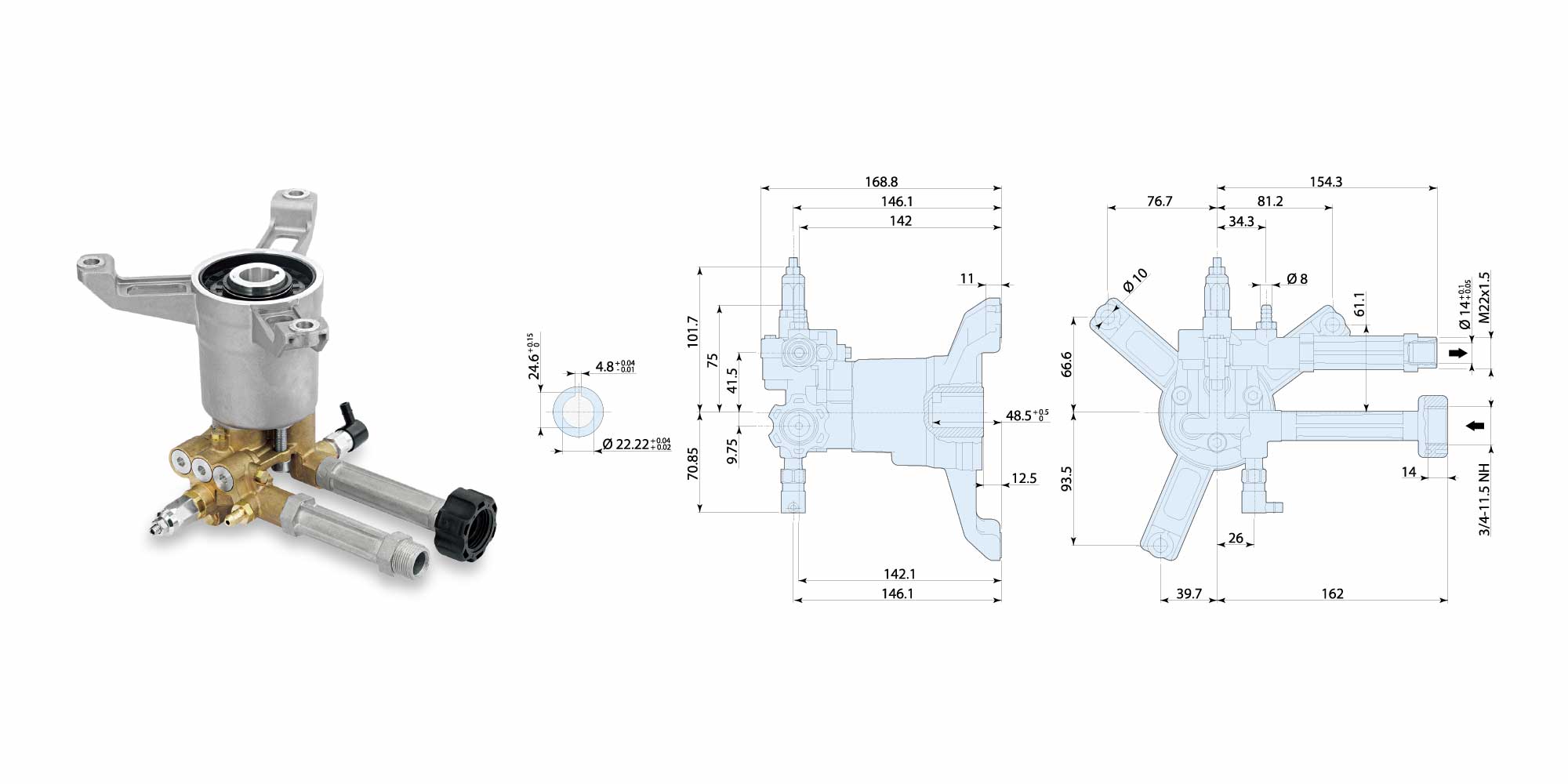

RQV 3400 RPM D version 3/4" with gas engine flange

  • Technical Specifications
    Model Flow Pressure Power Weight RPM
    l/min gpm bar psi hp kw kg rpm
    RQV 2.2G26 8.3 2.2 180 2600 4.4 3.3 3.5 3400
    RQV 2.2G28 8.3 2.2 190 2800 4.7 3.5 3.5 3400
    RQV 2.4G28
    9 2.4 190 2800 5.3 4.0 3.5 3400
    RQV 2.5G24
    9.5 2.5 165 2400 4.8 3.6 3.5
    3400
    RQV 2.5G30 9.5 2.5 205 3000 6 4.5 3.5
    3400
    RQV 2.7G30
    10.3 2.7 205 3000 6.5 4.8 3.5
    3400

    RQW 3400 RPM D version 7/8" with vertical gas engine flange

  • Technical Specifications
    Model Flow Pressure Power Weight RPM
    l/min gpm bar psi hp kw kg rpm
    RQW 2.2G26 8.3 2.2 180 2600 4.4 3.3 3.5 3400
    RQW 2.2G28 8.3 2.2 190 2800 4.7 3.5 3.5 3400
    RQW 2.4G28
    9 2.4 190 2800 5.3 4.0 3.5 3400
    RQW 2.5G28
    9.5 2.5 190 2800 6.5 4.8 3.5 3400
