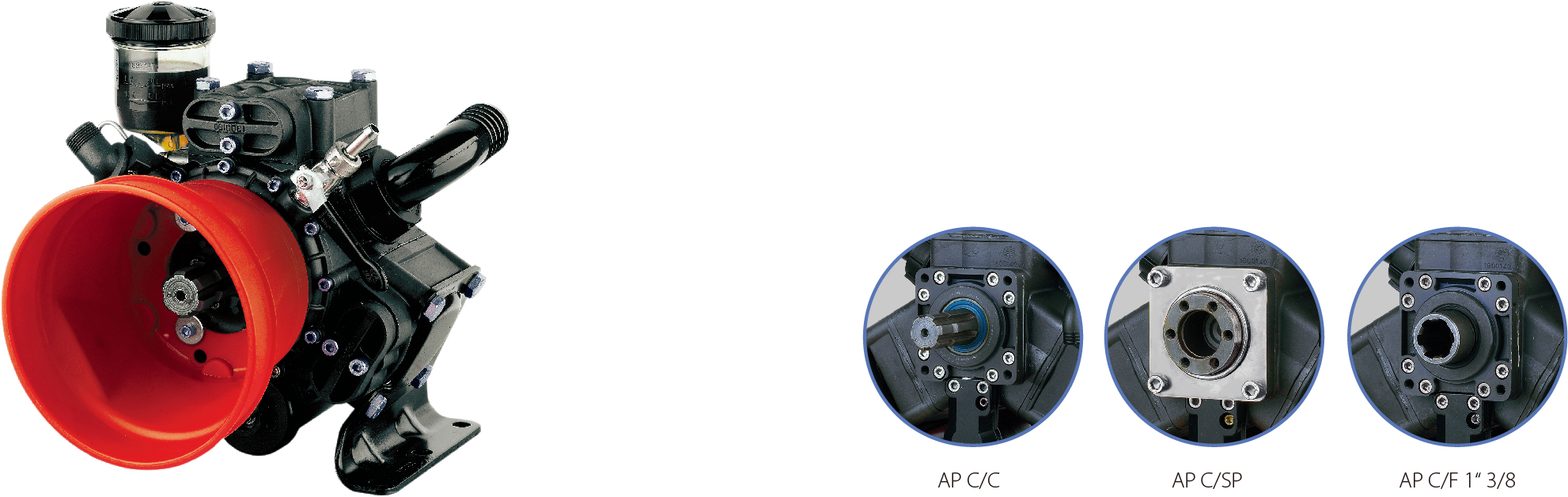

HIGH PRESSURE ANODIZED DIAPHRAGM PUMPS#AR 713#AR 813
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 713
|
76,1
|
40
|
7,3
|
3
|
20,5
|
350×335×409
|
ø40
|
ø ¾”G(M)
|
550
|
|
AR 813
|
79,9
|
50
|
8,8
|
3
|
20,5
|
350×335×409
|
ø40
|
ø ¾”G(M)
|
550
|

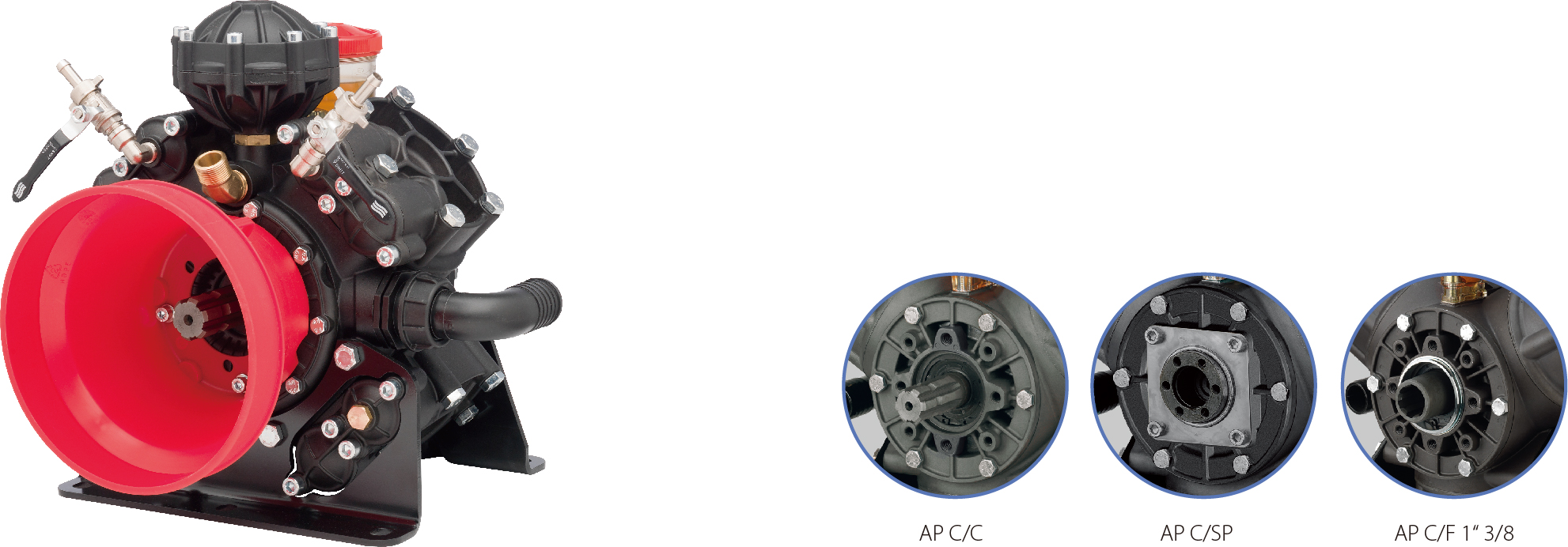

HIGH PRESSURE ANODIZED DIAPHRAGM PUMPS#AR 1064
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 1064
|
108,5
|
50
|
13,1
|
4
|
23,5
|
348×375×409
|
ø40
|
ø ¾”G(M)
|
550
|

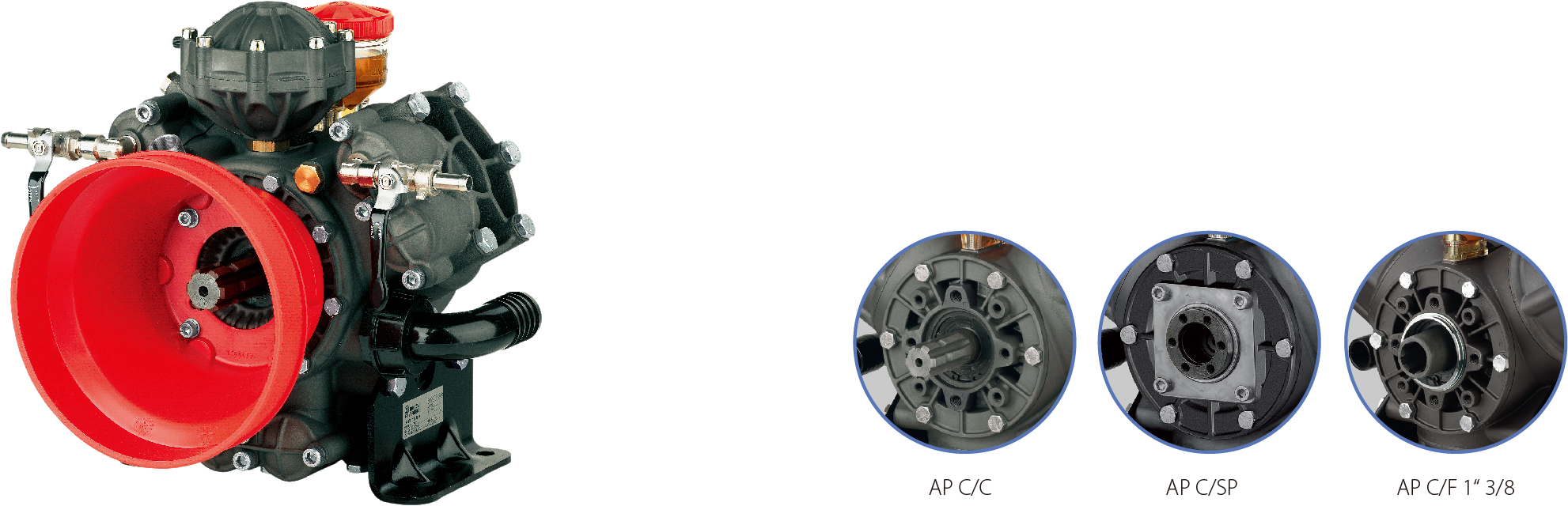

HIGH PRESSURE ANODIZED DIAPHRAGM PUMPS#AR 903#AR 1053#AR 1203
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 903
|
91,9
|
50
|
9,1
|
3
|
30,8
|
378×386×427
|
ø40
|
ø ¾”G(M)
|
550
|
|
AR 1053
|
102,4
|
50
|
12,1
|
3
|
31,2
|
378×386×427
|
ø40
|
ø ¾”G(M)
|
550
|
|
AR 1203
|
115,8
|
50
|
13,6
|
3
|
31,2
|
378×386×427
|
ø40
|
ø ¾”G(M)
|
550
|
HIGH PRESSURE ANODIZED DIAPHRAGM PUMPS#AR 1604
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 1604
|
155
|
50
|
22
|
4
|
40
|
432×416×350
|
ø40
|
ø ¾”G(M)
|
550
|
